- Place of Origin: JINING
- Brand Name: SHANTUI
- Model Number: HB37A
- Weight: 20000.000 kg
About SHANTUI CONCRETE MACHINERY:
Shantui Janeoo Machinery Co., Ltd. is the earliest enterprise producing concrete mixing equipment in China. It mainly specializes in concrete mixing station, dry-mixed mortar station, asphalt station, mixing truck and various mixing main engines. Shantui Chutian Construction Machinery Co., Ltd. is a main manufacturer in the concrete machinery industry in China, and it mainly specializes in concrete outrigger pump, trail pump, mixing truck, vehicle-borne pump and mixing building (station). Both of them can provide you with mature and reliable concrete equipment and perfect construction solutions.

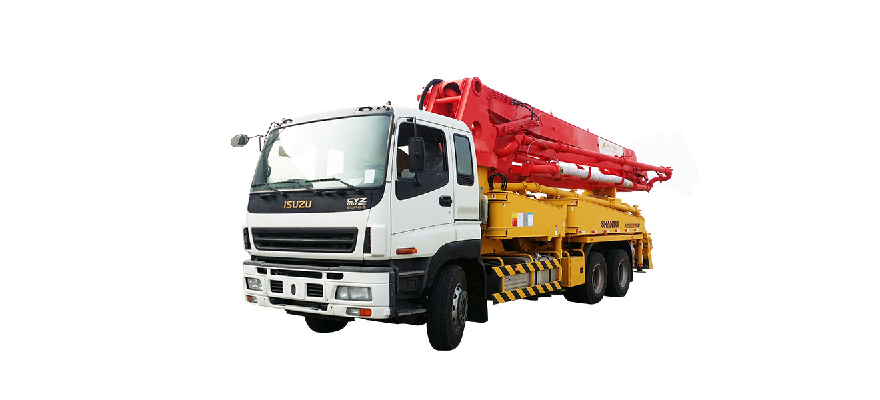

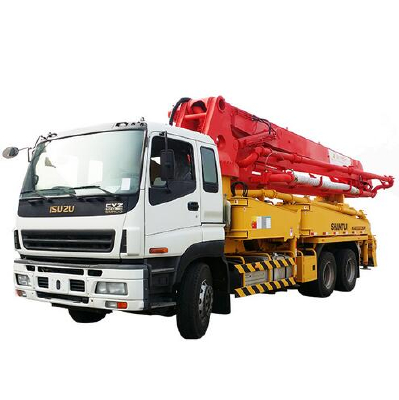

SHANTUI 37m Boom Concrete Pump Truck
| No. | Item | Unit | Parameter |
|---|---|---|---|
| 1 | Max. speed | km | 90 |
| 2 | Min. turning diameter | m | 18.4 |
| 3 | Brake distance | m | 7 |
| 4 | Approach angle | ° | 31 |
| 5 | Departure angle | ° | 12 |
| 6 | Chassis model | CXZ51Q ( Japan ) | |
| 7 | Total weight | kg | 28150 |
| 8 | 1st axle load | kg | 6780 |
| 9 | 2nd, 3rd axle load | kg | 21220 |
| 10 | Engine model | 6WF1 | |
| 11 | Max. Engine power | kW | 287 |
| 12 | Max. Engine torque | N.m | 1862 |
| 13 | Max. grade-ability | % | 38 |
| 14 | Fuel consumption limit | L/100km | 34 |
| 15 | Outline dimensions (Length´ Width ´Height) | mm | 11990´2490´3900 |
Technical Data for Pumping Operation
| No. | Item | Unit | Parameter |
|---|---|---|---|
| 1 | Theoretical output | m3/h | 138/90 |
| 2 | Max. delivery pressure | MPa | 8.7/13 |
| 3 | Reach height | m | 37.4 |
| 4 | Reach depth | m | 23.7 |
| 5 | Front outrigger transverse span | mm | 7280 |
| 6 | Rear outrigger transverse span | mm | 6600 |
| 7 | Outrigger longitudinal span | mm | 6860 |
| 8 | Delivery pipe diameter | mm | 125 |
| 9 | Remote control distance | m | 100 |
| 10 | Placing boom slewing range | ° | 370 |
SHANTUI MAIN PRODUCTS:
Bulldozer:900,520, 420, 320, 240, 230, 220, 200, 160, 130, 110, 100 and 80hp bulldozer, and include variant products, such as standard type, wet-land type, super wet-land type, desert type, plateau type, coal bulldozing type, forest lumbering type and environmental sanitation type.
Roller:4t-30t Vertical vibration road roller/Static road roller/Pneumatic tyred roller/Double steel wheel road roller/Full-hydraulic road roller with single steel wheel/Mechanical road roller with single steel wheel
Motor Grader:140/160/180/210hp series
Concrete Machinery: 26m-56m pump truck, trailer pump, truck mounted pump, 6-16m3 mixer truck
Wheel Loader:3/5/6/7/8T Wheel loader
Other Machineries: Trash compactor,Road Milling Machiner,Paver, Fire vehicle and Aerial Platform Vehicle,
