- Place of Origin: JINING
- Brand Name: SHANTUI
- Model Number: HJC5420THB-56
- Weight: 20000.000 kg
About SHANTUI CONCRETE MACHINERY:
Shantui Janeoo Machinery Co., Ltd. is the earliest enterprise producing concrete mixing equipment in China. It mainly specializes in concrete mixing station, dry-mixed mortar station, asphalt station, mixing truck and various mixing main engines. Shantui Chutian Construction Machinery Co., Ltd. is a main manufacturer in the concrete machinery industry in China, and it mainly specializes in concrete outrigger pump, trail pump, mixing truck, vehicle-borne pump and mixing building (station). Both of them can provide you with mature and reliable concrete equipment and perfect construction solutions.

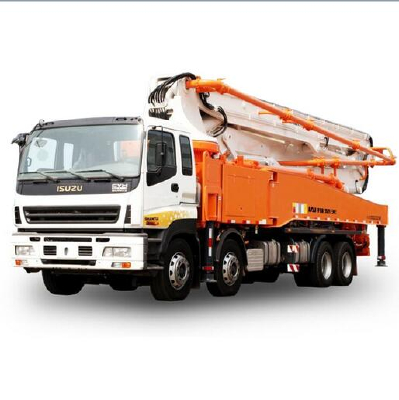

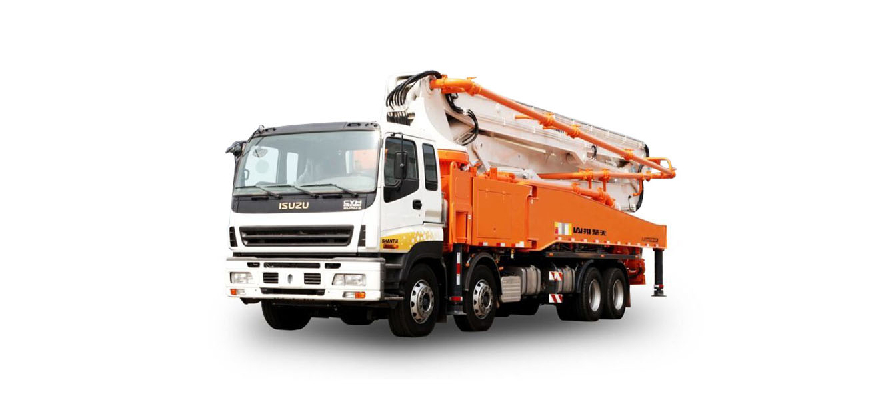

SHANTUI 56m Boom Concrete Pump Truck
| Model | Unit | HJC5420THB-56 | HJC5421THB-56 | ||
| Vehicle specification | Length × width × height | mm | 13810×2500×4000 | 13850X2500X4000 | |
| Gross weight of machine | Kg | 43000 | 42400 | ||
| Boom parameters | Folding type | 6-section RZ-shaped | |||
| Rotation angle for boom sections | ° | 90/180/180/240/210/100 | |||
| Vertical height of boom | m | 56 | |||
| Horizontal length of boom | m | 51 | |||
| Vertical height of boom | m | 37 | |||
| Minimum unfolding height of boom | m | 15.2 | |||
| Rotation angle of turntable | ±360° | ||||
| Outrigger parameters | Extending/retracting mode of outriggers | X-shaped outriggers | |||
| Maximum extending span of front outriggers | m | 9.475 | |||
| Maximum extending span of rear outriggers | m | 12.85 | |||
| Pumping system parameters | Theoretical concrete displacement | High pressure | m3/h | 120 | |
| Low pressure | m3/h | 170 | |||
| Theoretical pumping pressure | High pressure | Mpa | 12 | ||
| Low pressure | Mpa | 8.3 | |||
| Bore diameter of delivery cylinder | mm | 260 | |||
| Travel of delivery cylinder | mm | 2200 | |||
| Hopper capacity | L | 800 | |||
| System oil pressure | Mpa | 32 | |||
| Other | Remote controller | German HBC | |||
| Cooling mode of hydraulic oil | Air cooling | ||||
| Chassis | Chassis model | Benz ACTROS4141/8×4 | Isuzu CYH52Y | ||
| Engine power | 300kw/1800rpm | 294kw/1800rpm | |||
| Emission standard | Euro-IV | ||||
SHANTUI MAIN PRODUCTS:
Bulldozer:900,520, 420, 320, 240, 230, 220, 200, 160, 130, 110, 100 and 80hp bulldozer, and include variant products, such as standard type, wet-land type, super wet-land type, desert type, plateau type, coal bulldozing type, forest lumbering type and environmental sanitation type.
Roller:4t-30t Vertical vibration road roller/Static road roller/Pneumatic tyred roller/Double steel wheel road roller/Full-hydraulic road roller with single steel wheel/Mechanical road roller with single steel wheel
Motor Grader:140/160/180/210hp series
Concrete Machinery: 26m-56m pump truck, trailer pump, truck mounted pump, 6-16m3 mixer truck
Wheel Loader:3/5/6/7/8T Wheel loader
Other Machineries: Trash compactor,Road Milling Machiner,Paver, Fire vehicle and Aerial Platform Vehicle,
