- Size: 5140x3388x3032
- Place of Origin: JINING
- Brand Name: SHANTUI
- Model Number: SD16
- Weight: 17000.000 kg
About SHANTUI BULLDOZERS:
Shantui series bulldozers include 12 horsepower grades, i.e. 900,520, 420, 320, 240, 230, 220, 200, 160, 130, 110, 100 and 80, and include variant products, such as standard type, wet-land type, super wet-land type, desert type, plateau type, coal bulldozing type, forest lumbering type and environmental sanitation type. Bulldozers of various models can be configured with any of the following ancillary devices, such as direct dumping blade, angle blade, U-shaped blade, environmental sanitation blade, air conditioning cab, anti-rolling cab, simple cab, tripe-teeth ripper, single-tooth ripper, winch and carry scraper. The bulldozers are mainly used to working conditions including airport, road, mine, dam, railway, etc.

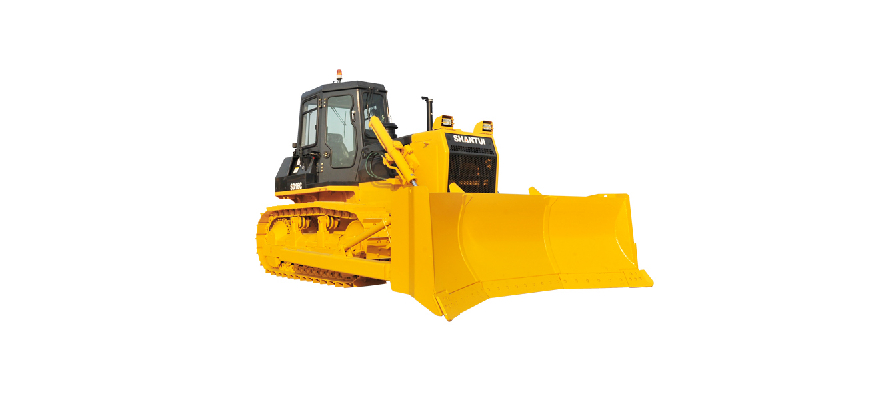

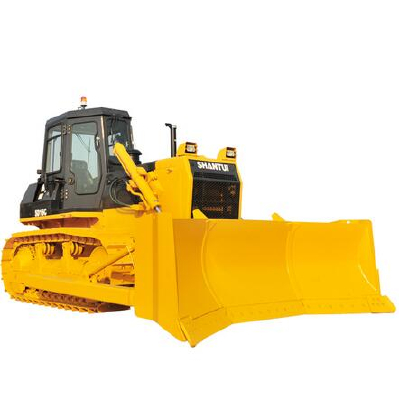

SHANTUI SD16 SERIES BULLDOZER
FOR SALE SD16C/SD16TL/SD16T/ST16R/SDR/SD16F
The SD16 is equipped with a hydraulic drive system with hydraulic control technology and has an advanced structure, providing reliable performance and convenient and flexible operation, making the SD16 an ideal construction machine.
ITEM | UNIT | SD16 |
L×W×H (Ripper not included) | mm | 5140×3388×3032 |
Operating weight (Ripper not included) | t | 17 |
Engine | - | Shangchai SC11CB184G2B1/ Weichai WD10G178E25 |
Rated power | kW/rpm | 135/1850 120/1850 |
Gradeability | ° | 30 |
Blade type | - | Straight tilt blade U blade Angle blade |
Blade width | mm | Straight tilt blade 3388×1149 U blade 3556×1120 Angle blade 3970×1040 |
Dozing capacity | m 3 | Straight tilt blade 4.5 U blade 5 Angle blade 4.3 |
Ma× drop below ground of blade | mm | 540 |
Lift height of blade | mm | 1095 |
Ripper type | - | Three-shank ripper |
Ripping depth of ripper | mm | 572 |
Lifting height of ripper | mm | 592 |
Number of carriers (each side) | - | 2 |
Number of track rollers (each side) | - | 6 |
Number of track shoes (each side) | - | 37 |
Width of track shoe | mm | 510 |
Track gauge | mm | 1880 |
Ground length and ground pressure | mm/MPa | 2430-0.067 |
Pitch | mm | 203.2 |
Forward speed | km/h | 0–3.29 |
0–5.82 | ||
0–9.63 | ||
Reverse speed | km/h | 0–4.28 |
0–7.59 | ||
0–12.53 | ||
Net Engine Output at Rated RPM | - | 148HP(110.5KW) |
SHANTUI MAIN PRODUCTS:
Bulldozer:900,520, 420, 320, 240, 230, 220, 200, 160, 130, 110, 100 and 80hp bulldozer, and include variant products, such as standard type, wet-land type, super wet-land type, desert type, plateau type, coal bulldozing type, forest lumbering type and environmental sanitation type.
Roller:4t-30t Vertical vibration road roller/Static road roller/Pneumatic tyred roller/Double steel wheel road roller/Full-hydraulic road roller with single steel wheel/Mechanical road roller with single steel wheel
Motor Grader:140/160/180/210hp series
Concrete Machinery: 26m-56m pump truck, trailer pump, truck mounted pump, 6-16m3 mixer truck
Wheel Loader:3/5/6/7/8T Wheel loader
Other Machineries: Trash compactor,Road Milling Machiner,Paver, Fire vehicle and Aerial Platform Vehicle,
