- Size: 9130x2600x3400
- Place of Origin: JINING
- Brand Name: SHANTUI
- Model Number: SG18-3
- Weight: 16200.000 kg

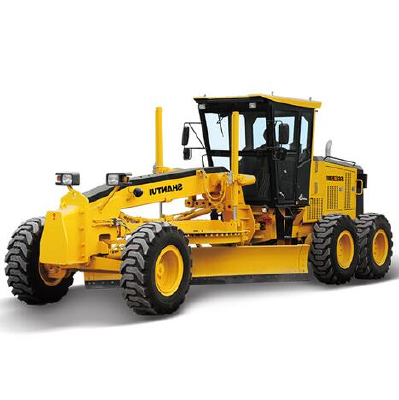

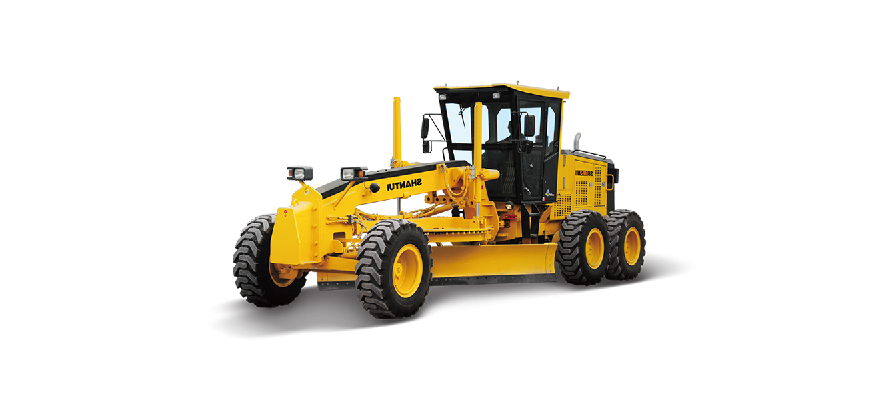

SHANTUI SG18-3 210HP MOTOR GRADER
Technical Features
● Featuring reliable performances and high efficiency and energy-saving, the Cummins engine and Shangchai engine are at your choice.
● The 6-speed electronically controlled shift hydraulic transmission with ZF technology features reasonable speed ratio distribution to ensure that the whole machine has three working gears at choice to ensure operating reliability and flexibility.
● The box-type structure welded from integral plates features high strength.
● The extern ring gear adopted features high transmitted torque, larger blade cutting angle, and better material handling capability and is especially useful while handling dry materials and clays.
● Featuring simple operations and high impact resistance against external forces, it’s applicable for the working conditions with high operating volume and severe operating environment.
● The international advanced hydraulic brake control technologies and international renowned hydraulic units are adopted to ensure braking safety and reliability.
● The full-hydraulic front wheel steering equipped features small turning radius and high mobility and flexibility.
● The high-grade full-sealed luxury cab with total visual field and the high-efficiency shock-absorbing seat maximize the operation comfort.
● The cab and the main frame are connected by shock absorber to ensure the operating safety and reliability.
● The standard high capacity heating and air conditioning system and the double-layer sealed side doors achieve <84dB noise and effectively reduce the labor strength of the operator.
● The maintenance-free high performance battery is equipped.
● The steel engine hood with four doors eases the maintenance and heat dissipation of the engine.
● The hydraulic oil tank adopts the overhead dismountable filter element, featuring convenient repairs and maintenances.
● The automatic leveling system can be additionally installed.
● The special drive tires and the conventional tires are at your choice for the motor grader.
Performance Parameters
| Length × width × height (mm) | 9130×2600×3400 | Operating weight (t) | 16.2 |
| Engine model | 6BTAA5.9-C180 SC8D190.1G2 | Rated power(kW/rpm) | 132(180HP)/2200 140(190HP)/2300 |
| Vehicle speed (km/h) | 5.3~37 | Minimum turning radius (mm) | 7800 |
| Blade dimension (mm) | 3965/635 | Rated working pressure (MPa) | 16 |
SHANTUI MAIN PRODUCTS:
Bulldozer:900,520, 420, 320, 240, 230, 220, 200, 160, 130, 110, 100 and 80hp bulldozer, and include variant products, such as standard type, wet-land type, super wet-land type, desert type, plateau type, coal bulldozing type, forest lumbering type and environmental sanitation type.
Roller:4t-30t Vertical vibration road roller/Static road roller/Pneumatic tyred roller/Double steel wheel road roller/Full-hydraulic road roller with single steel wheel/Mechanical road roller with single steel wheel
Motor Grader:140/160/180/210hp series
Concrete Machinery: 26m-56m pump truck, trailer pump, truck mounted pump, 6-16m3 mixer truck
Wheel Loader:3/5/6/7/8T Wheel loader
Other Machineries: Trash compactor,Road Milling Machiner,Paver, Fire vehicle and Aerial Platform Vehicle,
