- Size: 5860x2305x3014mm
- Place of Origin: JINING
- Brand Name: SHANTUI
- Model Number: SR10/SR10P
- Weight: 10120.000 kg
About SHANTUI ROLLER:
Shantui series road rollers mainly include mechanical vibratory road roller with single steel wheel, full-hydraulic vibratory road roller with single steel wheel, static rolling type, double steel wheel and pneumatic tyred rollers. They are mainly used in compaction of airport, road, mine, dam, railway and other construction sites. Shantui road roller possesses excellent compaction performance, outstanding working efficiency and strong power, and its cab possesses good view, and is configured with air conditioner and efficient shock absorption seat, thus enhancing operation comfort in an all-round way, and it also possesses relatively high reliability for it adopts imported hydraulic system. Shantui road roller can be configured with compactness measuring instrument to monitor and detect the compaction process automatically.

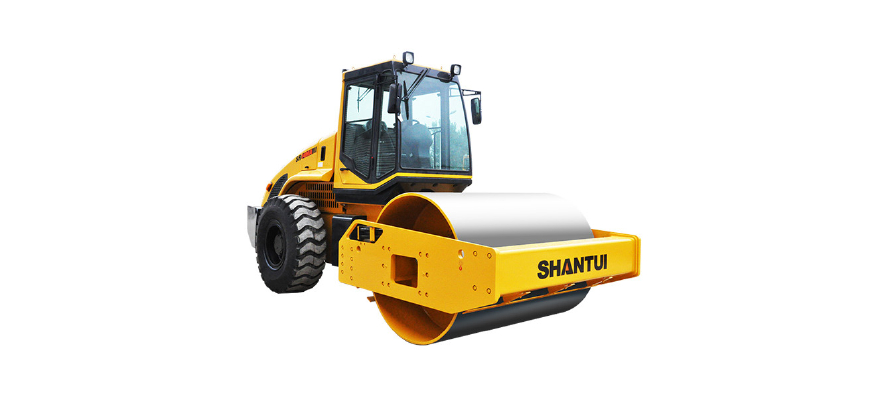

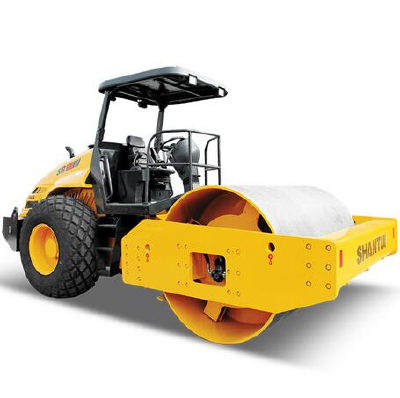

SHANTUI SR10/SR10P Full-Hydraulic Single-Drum 10T Vibratory Road Roller
| Length × width × height (mm) | 5860×2305×3014 | Total weight (kg) | 10120/10950 |
| Front wheel weight (kg) | 5980/6350 | Theoretical gradeability (%) | 48 |
| Vibratory drum width (mm) | 2130 | Static linear load (N/cm) | 259/277 |
| High vibration amplitude | 2.0/1.6 | Low vibration amplitude | 1.0/0.8 |
| Vibration frequency (high/low) (Hz) | 36/30 | Centrifugal force (high/low) (kN) | 270/180 |
| Engine model | Weichai WP4G110E220 | Rated power (kW) | 82 |
| Number/height of padfoot (mm) | 80/95 |
SHANTUI MAIN PRODUCTS:
Bulldozer:900,520, 420, 320, 240, 230, 220, 200, 160, 130, 110, 100 and 80hp bulldozer, and include variant products, such as standard type, wet-land type, super wet-land type, desert type, plateau type, coal bulldozing type, forest lumbering type and environmental sanitation type.
Roller:4t-30t Vertical vibration road roller/Static road roller/Pneumatic tyred roller/Double steel wheel road roller/Full-hydraulic road roller with single steel wheel/Mechanical road roller with single steel wheel
Motor Grader:140/160/180/210hp series
Concrete Machinery: 26m-56m pump truck, trailer pump, truck mounted pump, 6-16m3 mixer truck
Wheel Loader:3/5/6/7/8T Wheel loader
Other Machineries: Trash compactor,Road Milling Machiner,Paver, Fire vehicle and Aerial Platform Vehicle,
