Shantui SD16 Bulldozer for sale

Shantui SD16 Bulldozer for sale

  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets per Month
  • Port: China port
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:1993-12-14
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  111
  • Place of Origin:  JINING
  • Brand Name:  SHANTUI
  • Model Number:  SD16
  • Weight: 37200.000 kg

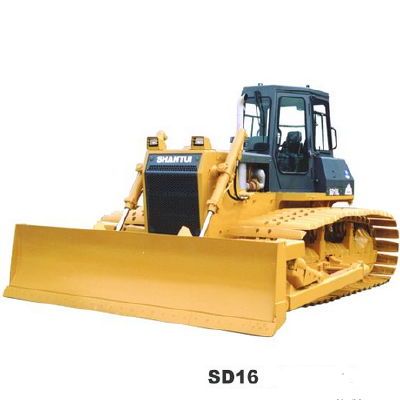

SHANTUI SD16 BULLDOZER FOR SALE

The SD16 is equipped with a hydraulic drive system with hydraulic control technology and has an advanced structure, providing reliable performance and convenient and flexible operation, making the SD16 an ideal construction machine.

ITEM

UNIT

SD16

L×W×H (Ripper not included)

mm

5140×3388×3032

Operating weight (Ripper not included)

t

17

Engine

-

Shangchai SC11CB184G2B1/ Weichai WD10G178E25

Rated power

kW/rpm

135/1850 120/1850

Gradeability

°

30

Blade type

-

Straight tilt blade U blade Angle blade

Blade width

mm

Straight tilt blade 3388×1149 U blade 3556×1120 Angle blade 3970×1040

Dozing capacity

m 3

Straight tilt blade 4.5 U blade 5     Angle blade 4.3

Ma× drop below ground of blade

mm

540

Lift height of blade

mm

1095

Ripper type

-

Three-shank ripper

Ripping depth of ripper

mm

572

Lifting height of ripper

mm

592

Number of carriers (each side)

-

2

Number of track rollers (each side)

-

6

Number of track shoes (each side)

-

37

Width of track shoe

mm

510

Track gauge

mm

1880

Ground length and ground pressure

mm/MPa

2430-0.067

Pitch

mm

203.2

Forward speed

km/h

0–3.29

0–5.82

0–9.63

Reverse speed

km/h

0–4.28

0–7.59

0–12.53

Net Engine Output at Rated RPM

-

148HP(110.5KW)



  • Size:  111
  • Place of Origin:  JINING
  • Brand Name:  SHANTUI
  • Model Number:  SD16
  • Weight: 37200.000 kg
