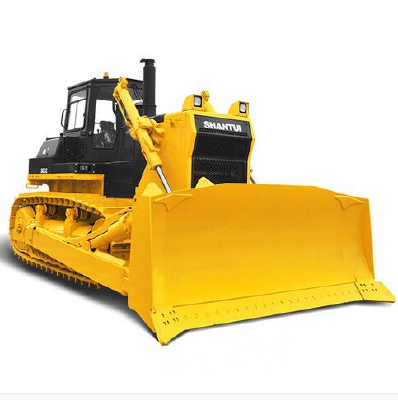

SHANTUI SD32W BULLDOZER FOR SALE
Based on the SD32, the SD32W rock bulldozer is specially designed for operation in tough working conditions with hard rock and frozen earth. The SD32W is equipped with a hydraulic drive system with hydraulic control technology, and an advanced structure, providing reliable performance and convenient and flexible operation. It also has a rock-type track and blade, allowing the SD32W to adapt to the heavy condition necessary when working with hard rock and frozen earth.
ITEM | UNIT | SD32W |
L×W×H (Ripper not included) | mm | 6880×4130×3725 |
Operating weight (Ripper not included) | t | 37.2 |
Engine | - | CumminsNTA855-C360S10 |
Rated power | kW/rpm | 235/2000 |
Gradeability | ° | 30 |
Blade type | - | Straight tilt bladeSemi-U bladeAngle blade |
Blade width | mm | Straight tilt blade 4130×1590Semi-U blade 4030×1720Angle blade 5000×1140 |
Dozing capacity | m 3 | Straight tilt blade 10Semi-U blade 11.9Angle blade 6 |
Ma× drop below ground of blade | mm | 560 |
Lift height of blade | mm | 1560 |
Ripper type | - | Single ripperThree-shank ripper |
Ripping depth of ripper | mm | Single ripper 1250Three-shank ripper 842 |
Lifting height of ripper | mm | Single ripper 955Three-shank ripper 883 |
Number of carriers (each side) | - | 2 |
Number of track rollers (each side) | - | 7 |
Number of track shoes (each side) | - | 41 |
Width of track shoe | mm | 560 |
Track gauge | mm | 2140 |
Ground length and ground pressure | mm/MPa | 3150-0.105 |
Pitch | mm | 228.6 |
Forward speed | km/h | 0–3.6 |
0–6.6 | ||
0–11.5 | ||
Reverse speed | km/h | 0–4.4 |
0–7.8 | ||
0–13.5 |
